식료품 200 Kg/배치 급속한 믹서 제림기

foodstuff High Efficient wet mixing granulator for wet powder

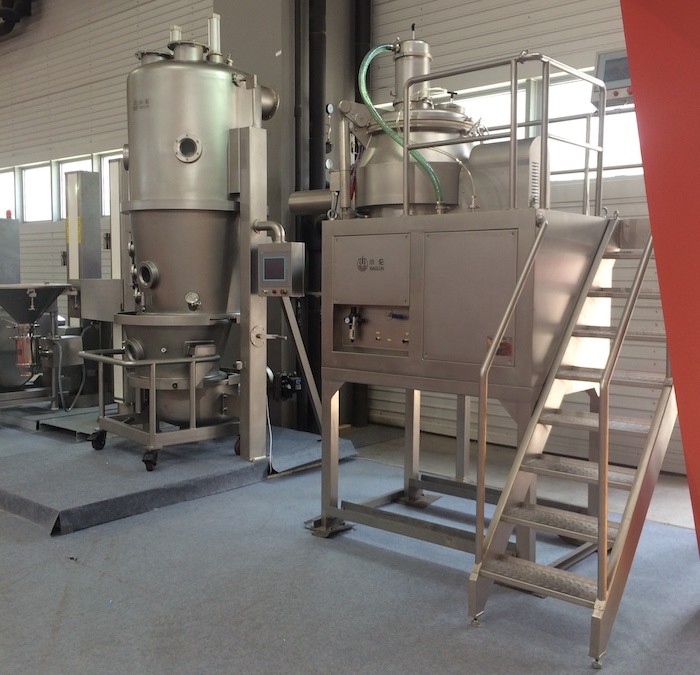

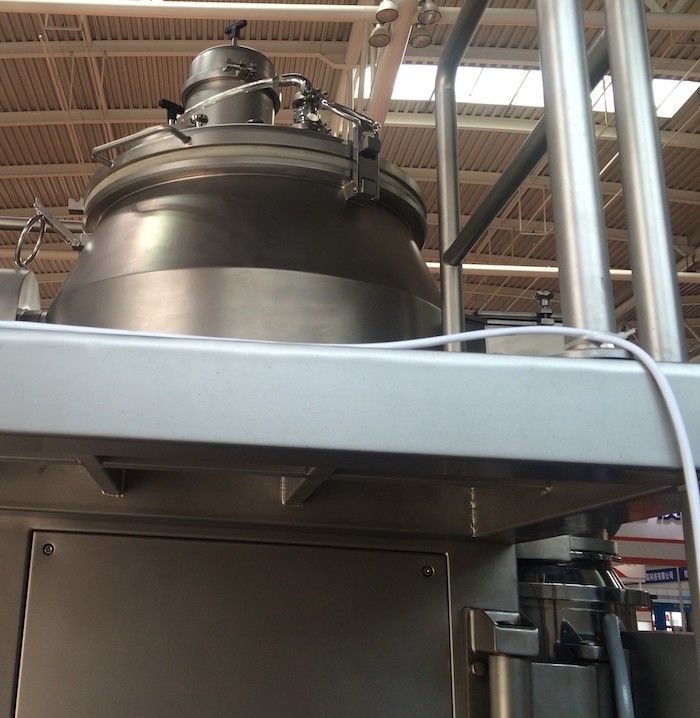

Foodstuff Rapid Mixer Granulator , Wet Granulator Machine For Wet Powder

Description

Work principle

The granulating process is divided into two procedures of mixing and granulating forming, which are finished in the same vessel. Powder materials in the fixed tapered vessel are hit and dispersed into semi fluid rolling state and given a complete mixture under the stirring action of mixed stock. With the infusion of bond, the powder is gradually moistened and the shape of materials is changed, which has strengthened the extrusion, attrition and kneading functions of the mixing paddle and vessel wall on the materials and thus formed evenly wet soft materials. These soft materials gradually turn into fine and homogeneous wet grains under the high -speed cutting and grain forming of the granulating paddle and eventually discharged through the outlet. The grain size is dependable on the material characteristics, rate of material preparing tool and time of grain forming.

Features

1. The machine adapts horizontal cylinder structure. Its structures is reasonable;

2. Use air filled seal shaft to drive. When washing, it can be changed to water;

3. Use fluidization to Granulate and the granule is like ball. lts flowability is good;

4. Compared with the traditional process,25%) of adhesive can be reduced and the drying time can be shorted;

5. The time of mixing in dry is 2 minutes and the time of granulating is 1-4 minutes. Compared with the traditional process, 4-5 times of efficiency is raised;

6. In the same sealed container, dry mixing, humidity mixing and granulating can be finished, it is in conformity with the requirements of GMP;

7. The whole operation has strict safe and protective measures.

8. The mixing and cutting speed are controlled through frequency change, so the granules are more even.

Technical parameters
